Freestall Design and Dimensions

01 Why Freestall Dimensions Matter

Freestalls are the single most important structural feature in a modern dairy barn. When properly designed, they allow cows to rest for 12 to 14 hours per day, which is directly linked to higher milk yield, improved immune function, and reduced lameness incidence. When poorly designed, even a clean, well-bedded stall becomes a source of chronic stress.

The guiding principle is simple: size the stall to match the size of the cow. This means accounting for the cow's body length at rest, the space she needs to lunge forward when rising and lying down, and the clearance required so she never contacts divider hardware during normal movement.

Research consistently shows that cows spend more time lying and experience fewer disturbances between neighbors in larger, correctly proportioned stalls. Larger stalls do not automatically cause hygiene problems - that concern is addressed below - and the productivity gains from improved rest far outweigh the cost of a few extra inches of concrete.

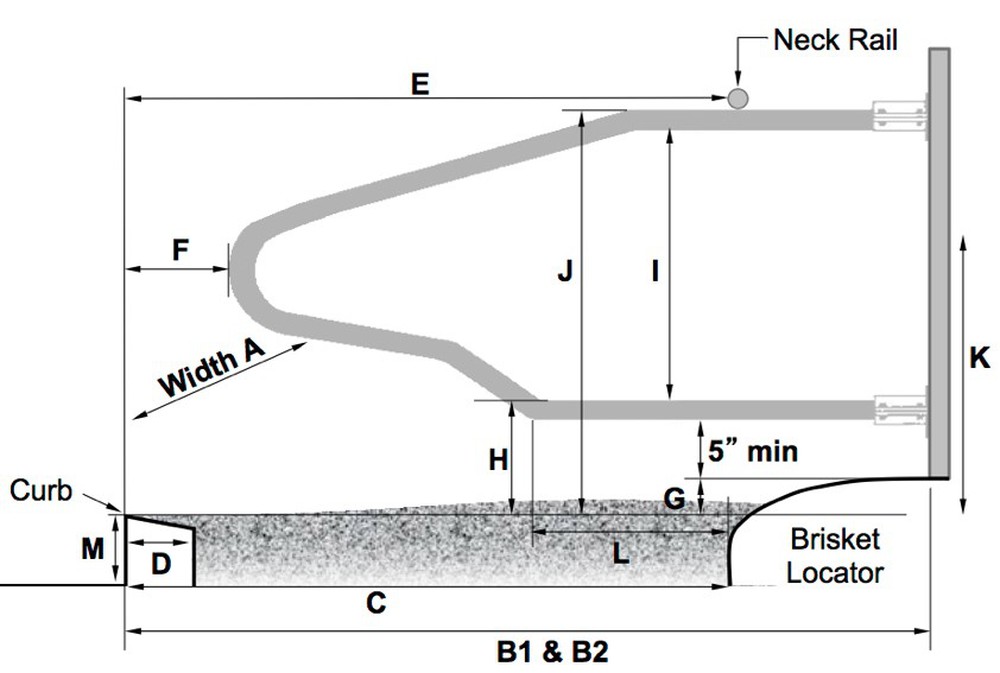

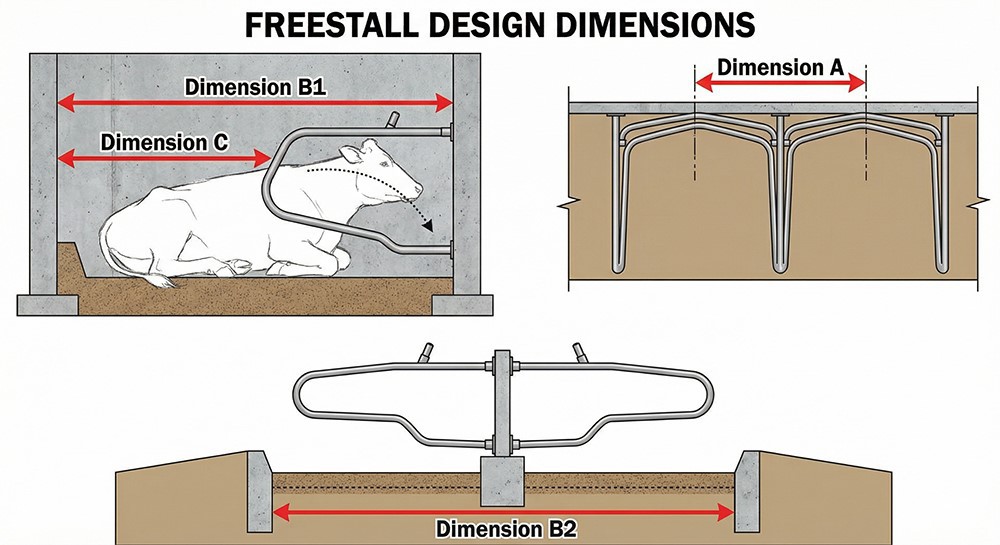

02 Critical Measurements Defined

Three dimensions govern freestall design above all others. Understanding what each measurement controls - and why - is essential before consulting any sizing table.

Stall Width (Dimension A)

Stall width is measured on center between adjacent divider loops. This is not the clear interior width. Width determines whether neighboring cows disturb each other during lying and rising and whether the cow has room to position herself comfortably without pressing against the divider pipe.

Stall Length (Dimensions B1 and B2)

Stall length is measured from the rear point of the curb to the furthest forward point the cow can lunge when rising. For stalls against a sidewall (B1), this is the total distance from the curb to the wall. For head-to-head stall platforms (B2), it is the outside curb-to-outside curb measurement across both stalls.

Length is the dimension most frequently underestimated. A cow does not simply stand up from rest the way a human does. She first lunges her head forward and downward, rocks her weight forward, then pushes off her rear limbs. This sequence requires substantial forward space that must be unobstructed.

Rear Curb to Brisket Locator Distance (Dimension C)

The distance from the rear curb to the rear edge of the brisket locator determines how far forward the cow lies in the stall. If this distance is too short, the cow is pushed too close to the rear of the stall and manure contamination increases. If it is correct, the cow lies with her rear end positioned cleanly over the alley curb.

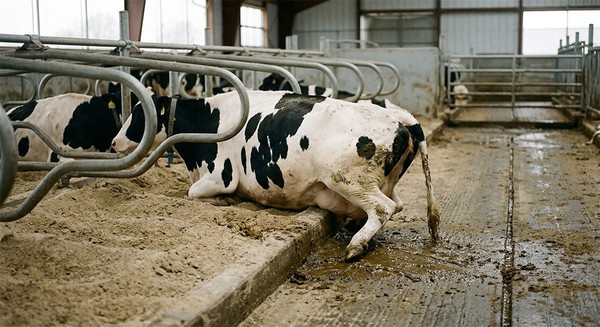

03 Diagonal Lying: Causes and Prevention

Diagonal lying is one of the most common and costly problems in freestall facilities. When a cow lies at an angle across the stall rather than straight along its length, her rear end projects into the alley, leading to manure contamination of the bedding, increased somatic cell counts, elevated mastitis risk, and poor stall hygiene scores.

This distinction matters enormously for troubleshooting. Producers who observe diagonal lying often respond by narrowing their stalls, which makes cow comfort worse without solving the problem. The actual causes are structural:

Addressing any combination of these factors will reduce diagonal lying. Making a stall wider without correcting lunge space or brisket locator height will worsen it. In new facilities, all of these dimensions must be specified together as a system, not as individual components.

04 Target Freestall Dimensions by Body Weight

The table below provides recommended dimensions for dairy cows across a range of body weights from 1,000 to 2,000 lbs. All measurements are in inches unless otherwise noted. These targets apply to single-age pens. Mixed-age groups, such as prefresh pens housing both mature cows and first-calf heifers, require a compromise between the different size requirements of each subgroup.

* Dimension E in deep, loose-bedded stalls is shorter than in mattress stalls to encourage cows to stand with their rear feet in the alley rather than on the stall base.

05 Key Benchmarks for Mature Holstein Cows

For the most common breed on North American dairies - the mature Holstein at approximately 1,400 to 1,600 lbs - the following benchmarks serve as practical starting points for new construction.

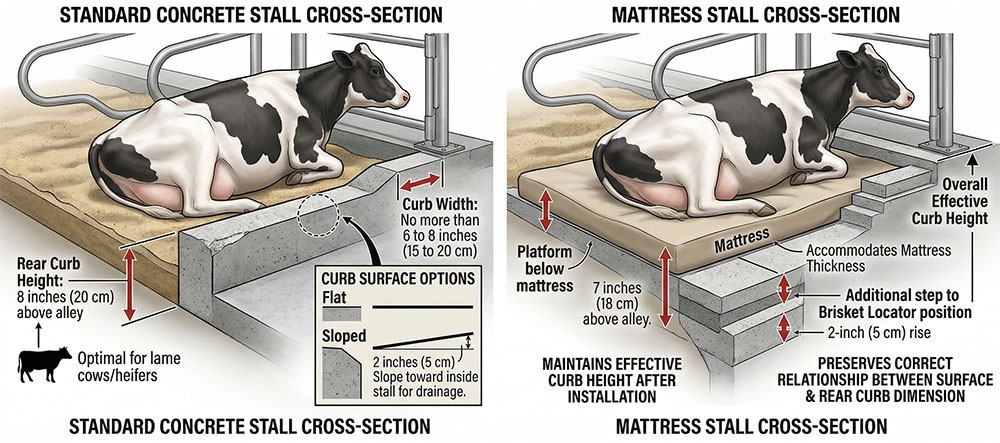

07 Rear Curb Design and Height

The rear curb serves two competing functions: it limits manure contamination of the stall during scraping or flushing operations, and it must be low enough that cows can exit the stall without difficulty. Getting this balance right is especially important for lame cows and first-lactation heifers, both of which have reduced mobility.

For most mature cow populations, a rear curb height of 8 inches (20 cm) above the alley and a width of no more than 6 to 8 inches (15 to 20 cm) represents the best available compromise. The curb surface can be flat or slope 2 inches (5 cm) from the outside face to the inside of the stall to improve drainage.

In mattress stalls, the concrete platform below the mattress should be raised 7 inches (18 cm) above the alley, with an additional 2-inch rise to the brisket locator position to accommodate the mattress thickness. This maintains the effective curb height after the mattress is installed and preserves the correct relationship between the stall surface and the rear curb dimension.

08 Considerations for Remodeled Facilities

Remodeling an existing barn involves constraints that new construction does not. The distance between cross alleys is fixed, which limits how many stalls can fit in each row and therefore what individual stall widths are achievable. The depth of the stall platform may be fixed by foundation walls. Despite these constraints, meaningful improvements are almost always possible.

Widening Stalls Without Lengthening Them

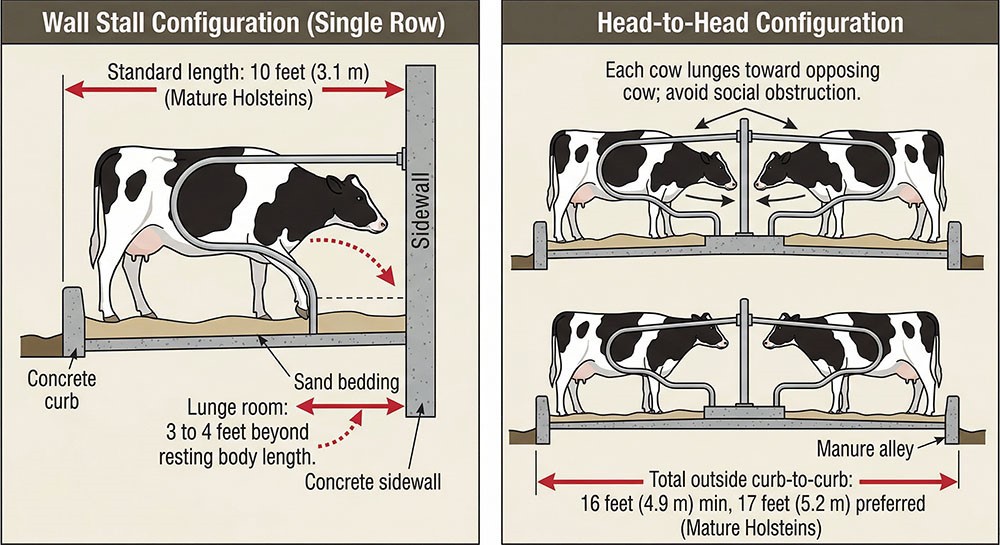

One of the most common remodeling errors is widening stalls while leaving the length unchanged. If a wall stall remains at or below 8 feet (2.4 m) in length, cows cannot lunge forward and must lunge to the side. A wider stall under these conditions increases the likelihood of diagonal lying - the opposite of the intended outcome. Width improvements must be paired with length improvements to deliver their benefit.

Head-to-Head Platform Minimums

In head-to-head configurations, short platforms of 14 to 15 feet (4.3 to 4.6 m) create social obstructions that force side lunging. The minimum acceptable platform length for a remodel is 16 feet (4.9 m), with 17 feet (5.2 m) strongly preferred. Platforms of 18 feet (5.5 m) or longer introduce divider loop stability challenges that require structural attention.

Even within the constraints of an older barn, moving from a 45-inch (114 cm) stall to a 48-inch (122 cm) stall is an improvement for mature Holstein cows whether they lunge forward or to the side. The gains from wider stalls compound when length is also corrected.

09 Freestall Design Checklist

Use this checklist before finalizing plans for new construction or before approving a remodeling proposal. Each item represents a risk factor for poor cow comfort, increased lameness, or stall hygiene problems.
