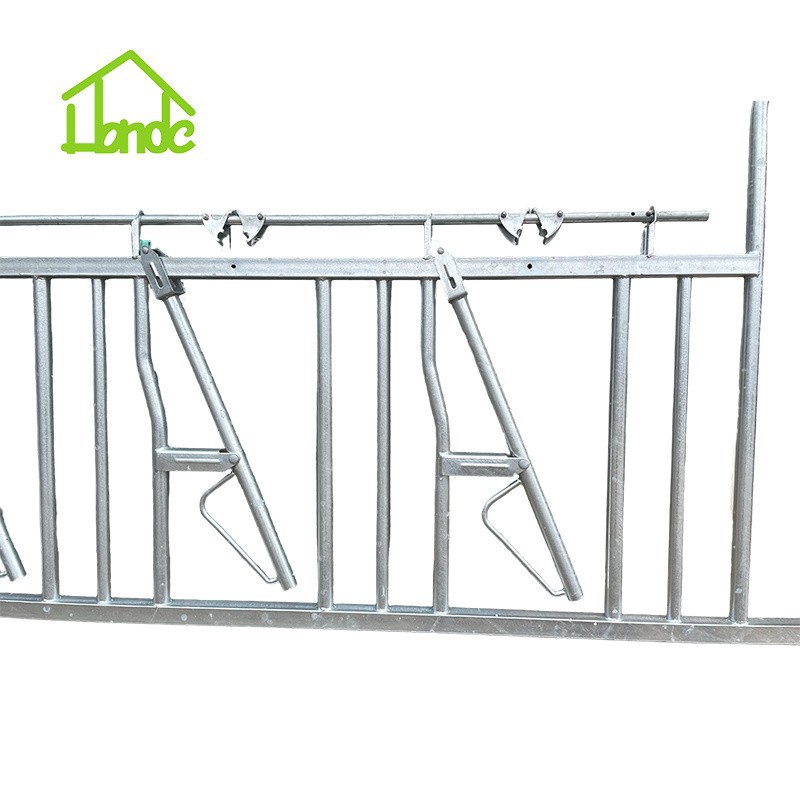

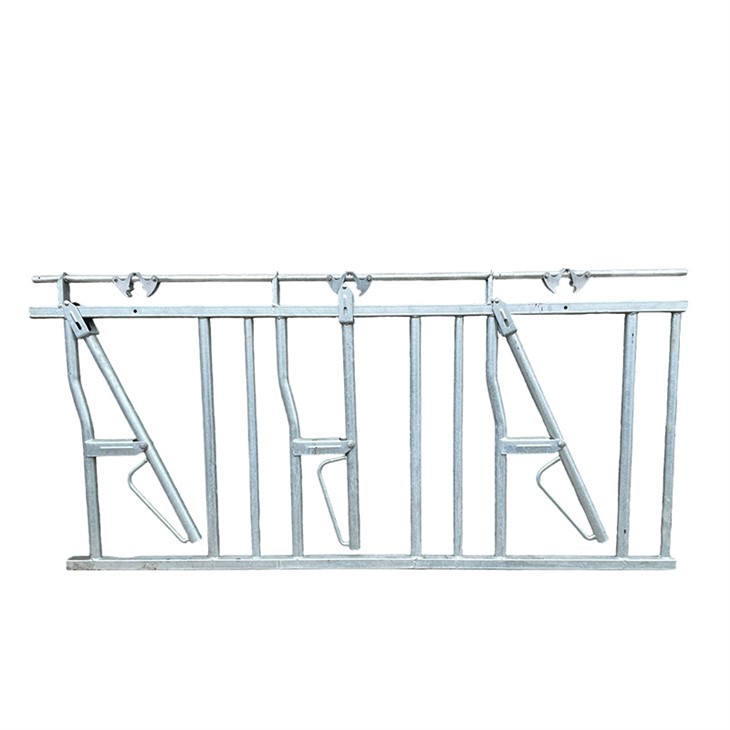

Products Specification
| No. | Component / System | Specification / Size | Material | Process / Technical Requirements | Remarks |
|---|---|---|---|---|---|
| 1 | Upper and Lower Crossbar | 40 × 50 × 2.75 | Q235 | After welding, the whole component shall be hot-dip galvanized, with galvanizing layer ≥ 80 μm | Main component |
| 2 | Straight Support Rod | Φ42 × 2.75 | Q235 | After welding, the whole component shall be hot-dip galvanized, with galvanizing layer ≥ 80 μm | Main component |
| 3 | Bending Support Rod | Φ42 × 2.75 | Q235 | Processed by special equipment; inner arc without ripples and outer arc without scratches. After welding, overall hot-dip galvanized, galvanizing layer ≥ 80 μm | Main component |

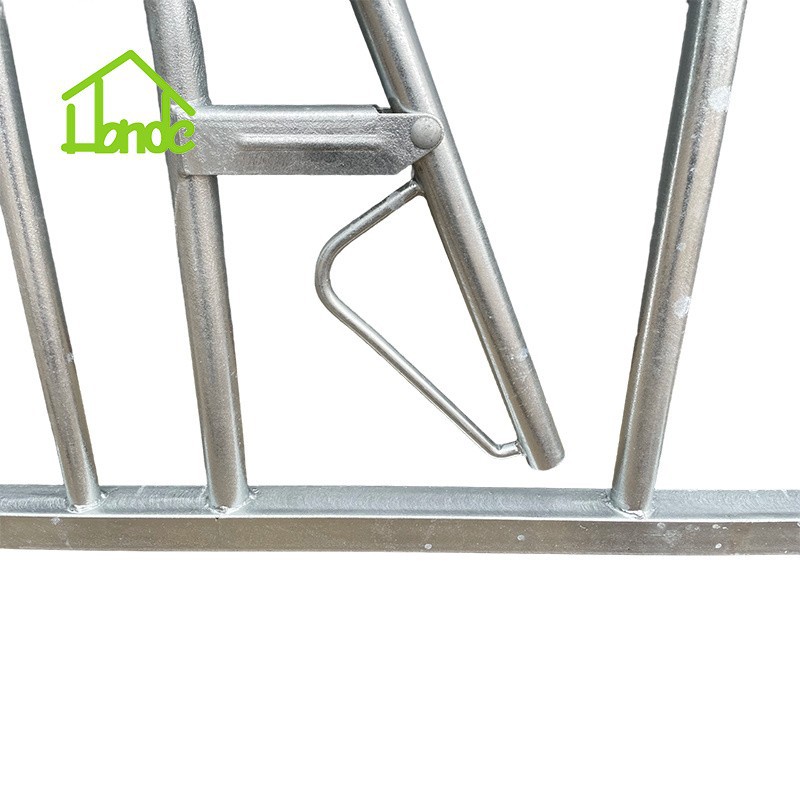

| 4 | Moveable Rod | Φ42 × 2.75 | Q235 | After welding, the whole component shall be hot-dip galvanized, with galvanizing layer ≥ 80 μm | Main component |
| 5 | Supports for Moveable Rod | Thickness 4.25 mm | Q235 | Stamped forming; after welding, overall hot-dip galvanized, galvanizing layer ≥ 80 μm | Main component |

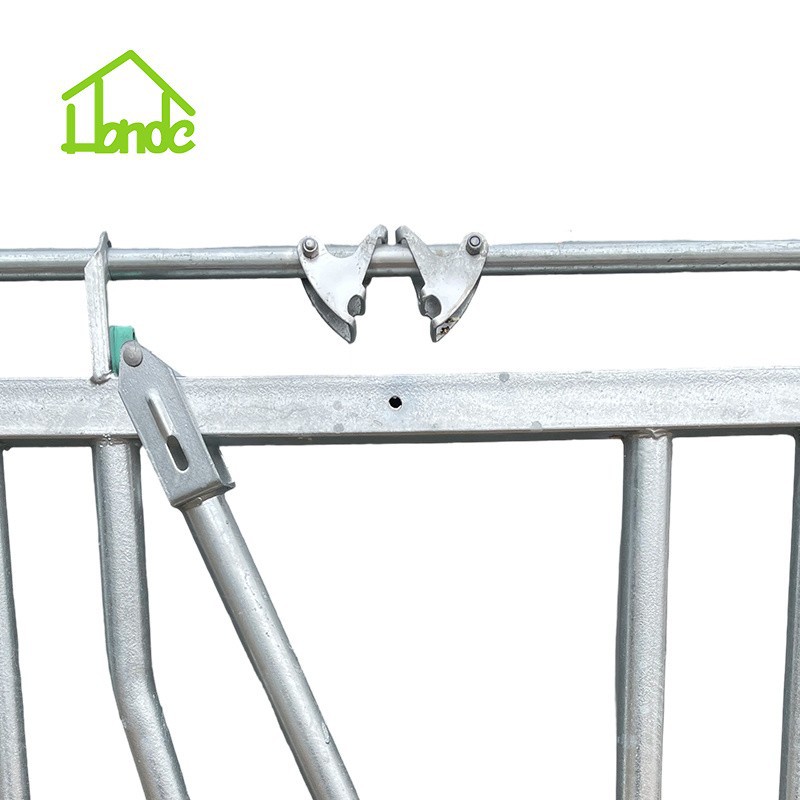

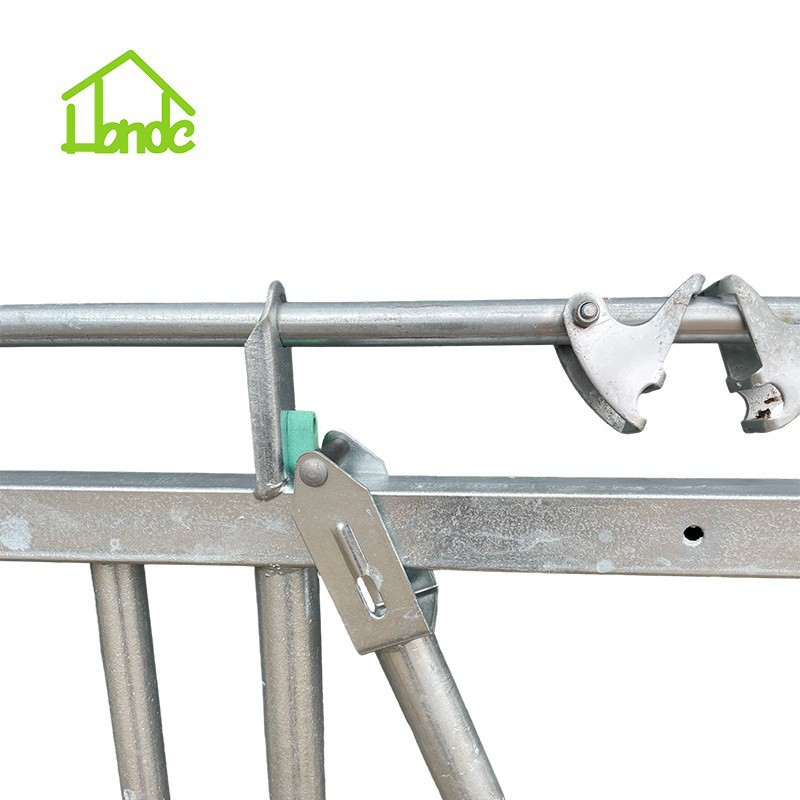

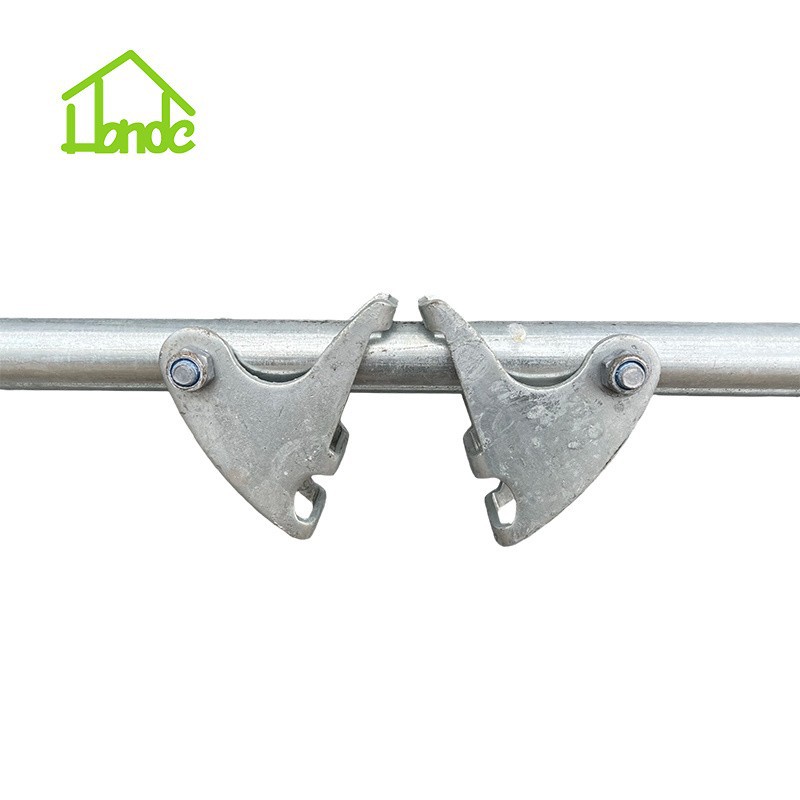

| 6 | Self-locking System (Dovetail Clip) | 4 mm thickness | Q235 galvanized steel plate | Integrally stamped from galvanized steel plate | Locking mechanism |
| 7 | Transmission Pipe of Self-locking System | Φ25 × 2.5 | Q235 galvanized tube | Galvanized tube | - |
Key Features & Benefit
Superior Durability:Constructed from heavy-duty steel with a hot-dipped galvanized finish, providing exceptional resistance to corrosion, rust, and the harsh ammonia environment of a barn.

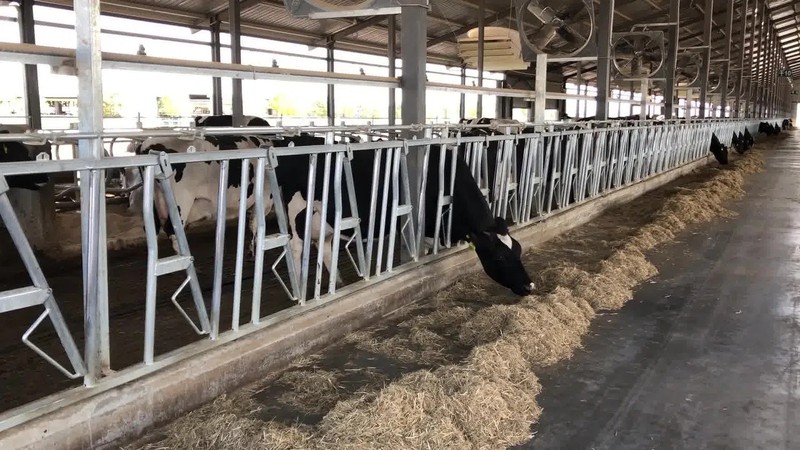

Self-Locking Efficiency:The intuitive self-locking system allows cows to lock themselves in while feeding, making it easy for a single operator to manage a large herd.
Animal Safety & Comfort:Designed with smooth edges and a quiet locking mechanism to minimize animal stress and prevent injuries during entry and exit.
Adjustable Neck Width:Easily adjustable to accommodate different cattle sizes, from heifers to fully grown dairy cows.
Multiple Configurations:Available in various lengths and stall counts (e.g., 3-stall, 4-stall, or 6-stall sections) to fit your specific barn layout.
