Product Specifications
DIAGRAM CONSTANTS:
C = 8 -12 inches less than E
Example: If your bed is 7' long you will want 6" or 6'6" loop
B = 36" less than C
Example: Your loop is 6' long so B = 36"
| Weight (lbs) | Stall Loop Height (A) | Mount Height (D) | BED LENGTH (E) | Brisket Pipe (F) | Neck Rail Mount (G) | Bed Width |
|---|---|---|---|---|---|---|
| 300–400 | 18"–24" | 30"–33" | 46"–52" | 41"–44" | 51"–55" | 30"–32" |
| 400–700 | 22"–25" | 33"–38" | 50"–69" | 44"–55" | 55"–67" | 32"–36" |
| 700–900 | 24"–28" | 38"–42" | 69"–75" | 55"–60" | 67"–73" | 36"–41" |
| 900–1100 | 26"–30" | 42"–44" | 75"–84" | 60"–64" | 73"–78" | 41"–45" |
| 1100–1300 | 30"–34" | 44"–48" | 84"–90" | 64"–66" | 78"–82" | 45"–48" |
| 1300–1700 | 32"–36" | 48"–51" | 90"–96" | 66"–70" | 82"–87" | 48"–51" |
| 1700+ | 36" | 53" | 102" | 71" | 89" | 53" |
Products Description

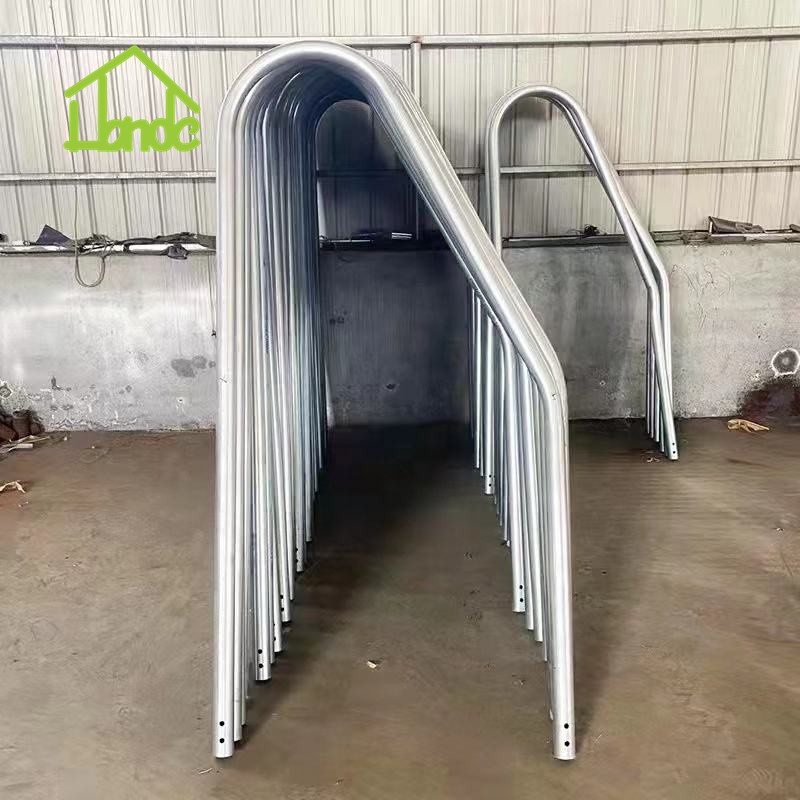

Constructed from high-tensile steel and finished with a premium galvanized coating, these dividers are built to handle the physical demands of large-scale dairy and beef operations.
Key Features & Benefits

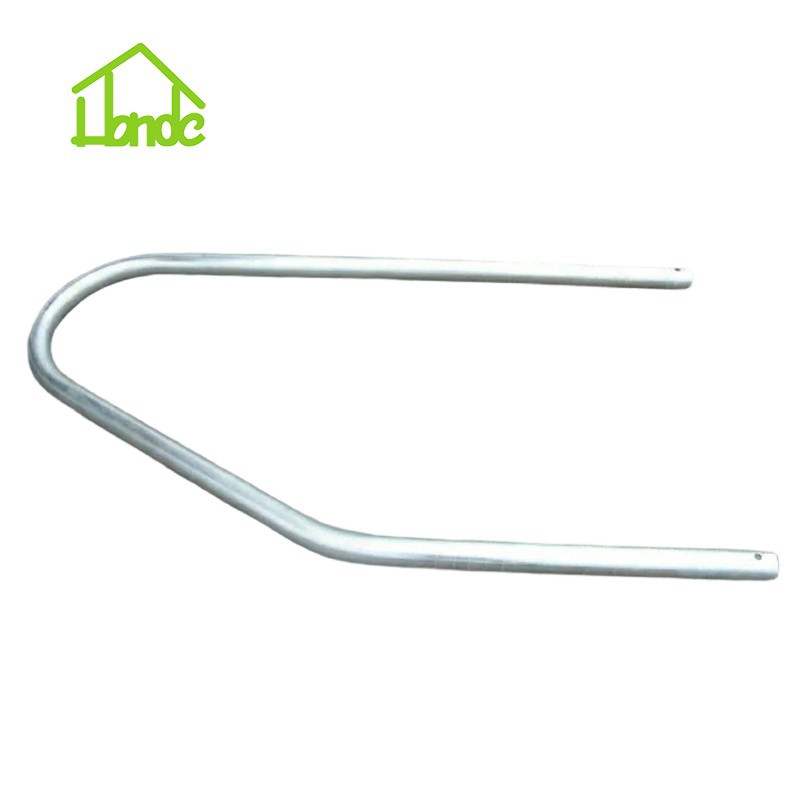

Anatomical 2-Bend Design: The ergonomic curves follow the natural body shape of the cow, preventing sideways lying and reducing the risk of leg or hip injuries during movement.
Hot-Dipped Galvanized Finish: Every divider is treated with a heavy-duty galvanized coating (ISO 1461) to resist the highly corrosive ammonia and moisture typically found in barn environments.

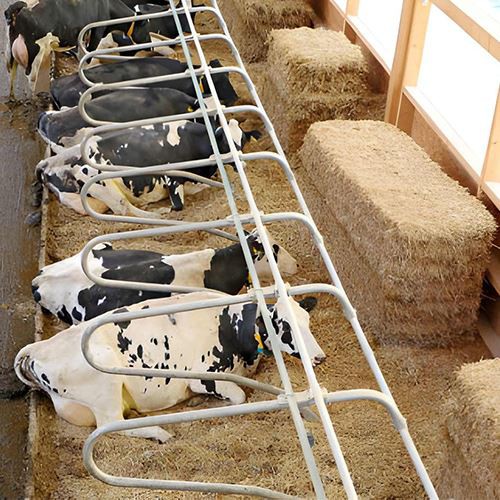

Improved Stall Hygiene: By guiding the animal to lie straight, these loops keep manure out of the bedding zone, lowering the risk of mastitis and maintaining a drier, healthier environment.
Rugged Durability: Made from thick-walled steel tubing, our dividers are strong enough to withstand the weight and pressure of heavy livestock without bending or failing.
Versatile Mounting: Designed for flexible installation, these loops can be mounted to floor posts or wall-mounted frames, making them suitable for both new constructions and barn upgrades.
